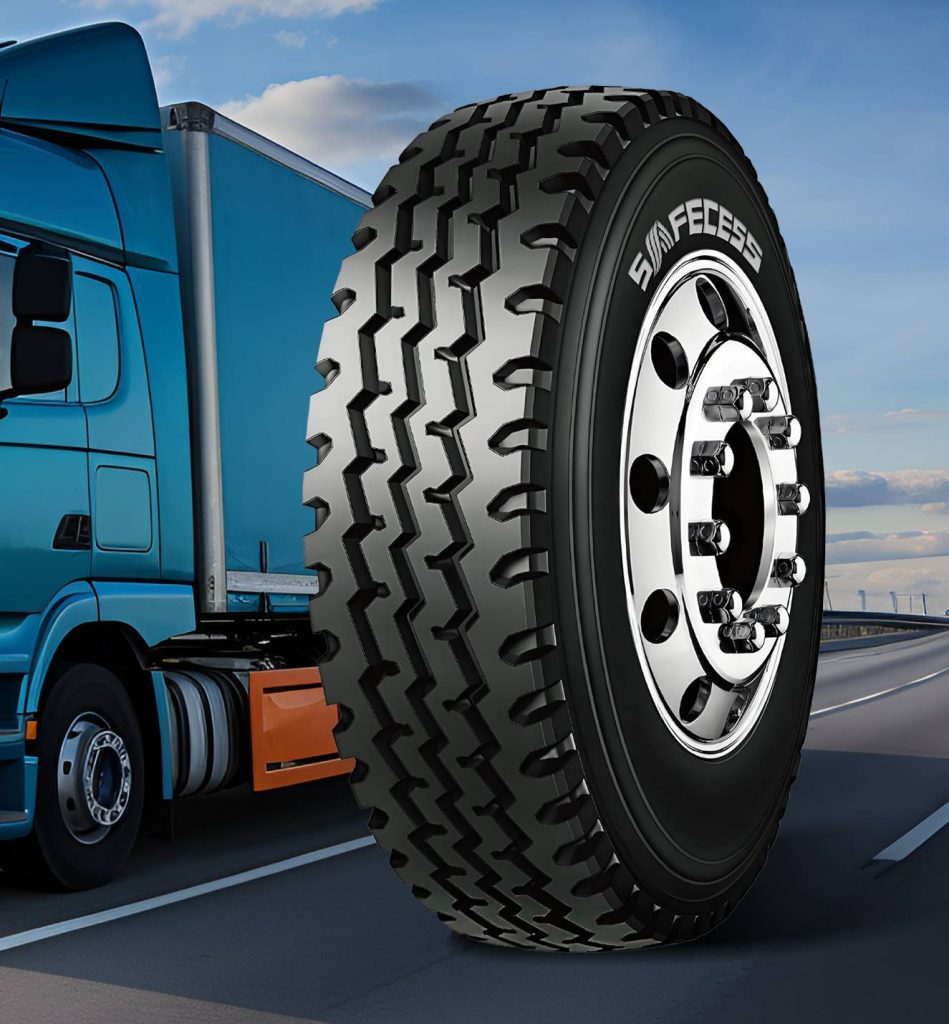

SFC18

Tread pattern pitch design reduces ride noise. Cut and chip resistant tread compound for improved wear.

Rib siping design improves overall traction in wet conditions.

Enhanced tread bead design provides excellent load capability.

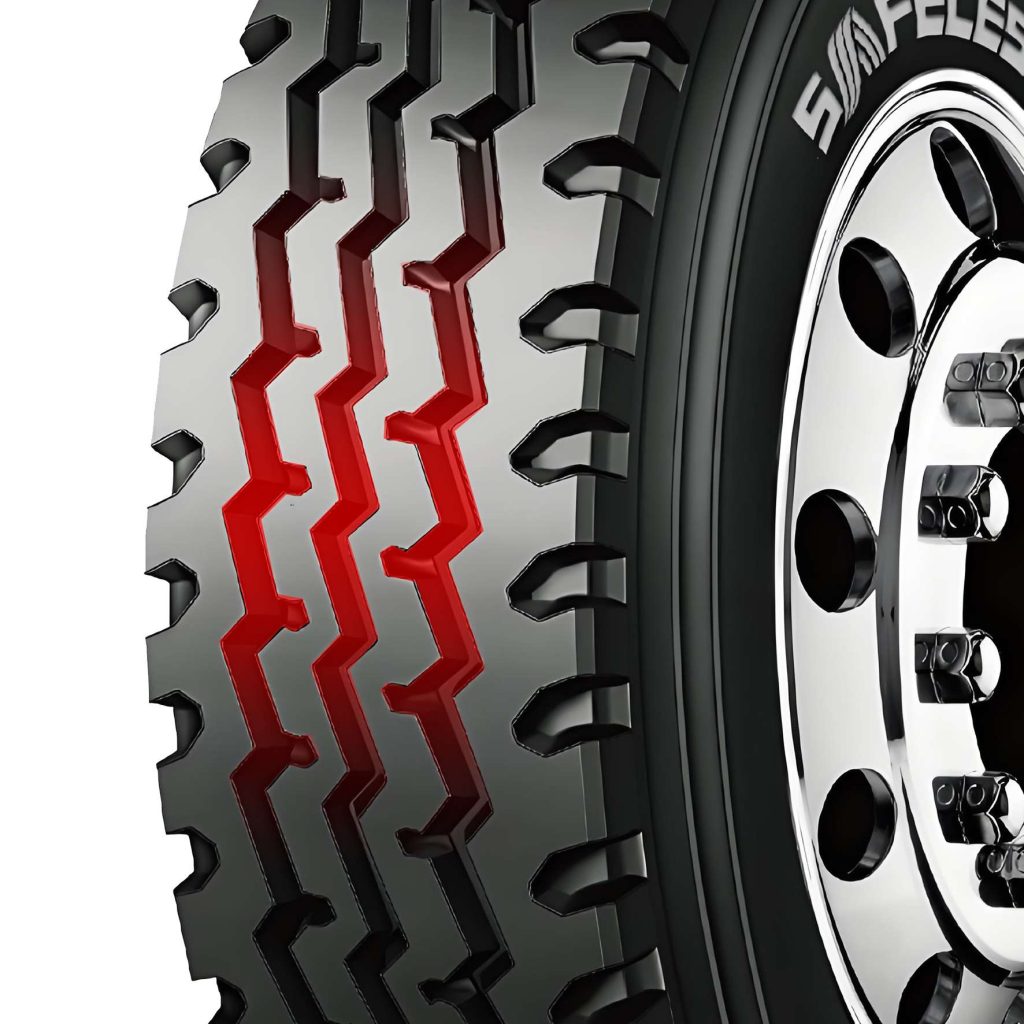

Three wide grooves provide excellent grip and all-season performance.

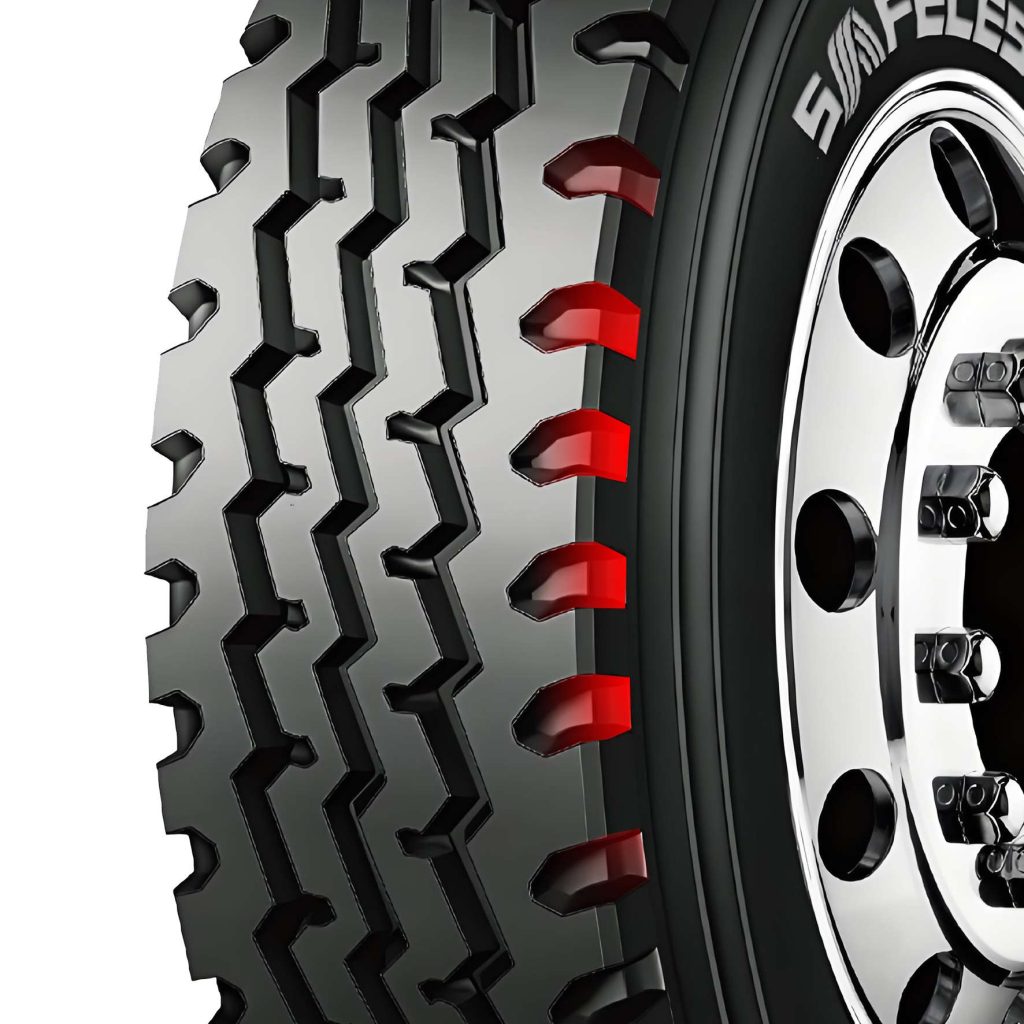

Large open shoulder grooves for improved traction and heat dissipation.

size

ALL SIZES

Size	PR	Load	Speed	Standard	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Index	Rating	Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
7.50R16LT	14	122/118	L	12	1650	1450	870	870	215	805	12
12.00R20	20	156/153	K	8.5	4000	3650	900	900	315	1125	17
12.00R24	20	160/157	K	8.5	4500	4125	900	900	315	1226	16
11R22.5	18	149/146	L	8.25	3250	3000	830	830	279	1054	15
12R22.5	18	152/149	L	9	3550	3250	850	850	300	1096	15
13R22.5	20	156/153	L	9.75	4000	3650	900	900	320	1136	15
11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1116	15
295/80R22.5	18	152/149	L	9	3550	3250	900	900	298	1044	15
315/80R22.5	20	156/153	L	9	4000	3650	850	850	312	1076	14
