FA608

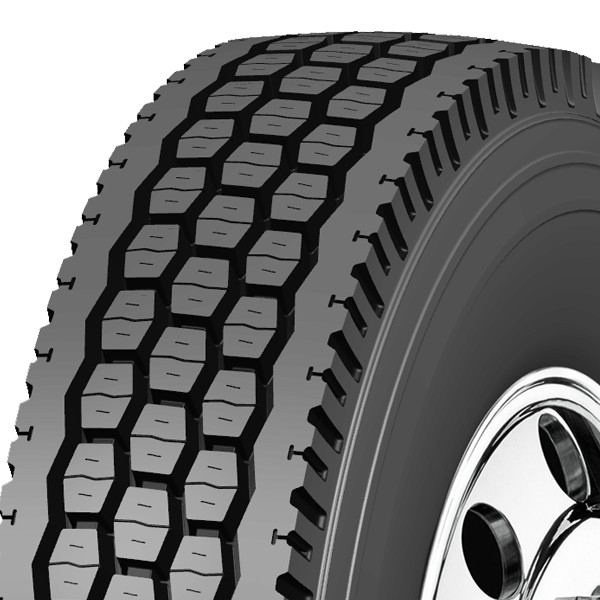

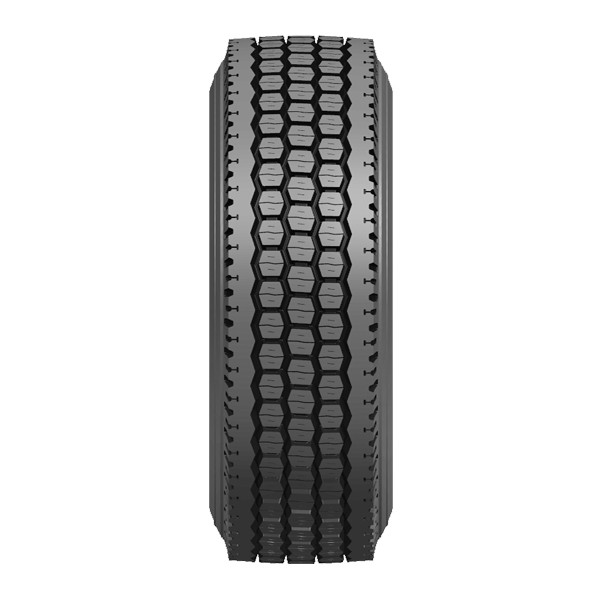

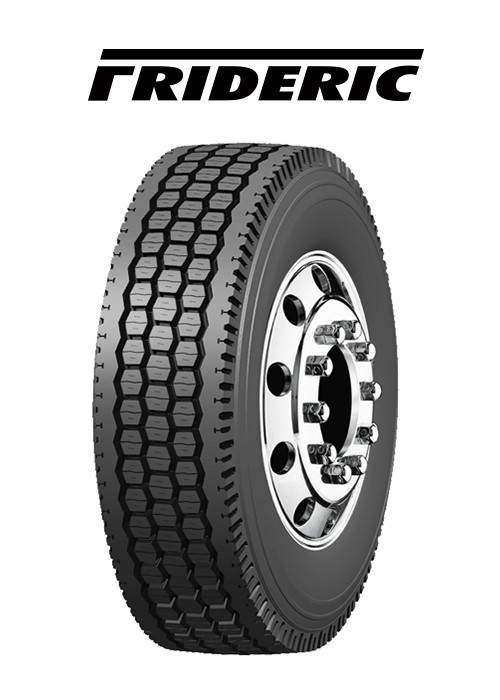

FA608, the pattern specially designed for drive position of heavy trucks, with high load capacity, excellent handling and long mileage.

Product features: strong driving, load resistance, easy braking, long life

Applicable environment: suitable for medium and long distance vehicles on ordinary and highway

Installation position: drive wheel

Pattern type: medium and long distance

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
22.5″	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	21.3
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	15.0
24.5″	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	21.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	21.3

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	15.0
	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	21.0

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
22.5″	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	21.3
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	15.0
24.5″	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	21.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	21.3

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	15.0
	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	21.0
