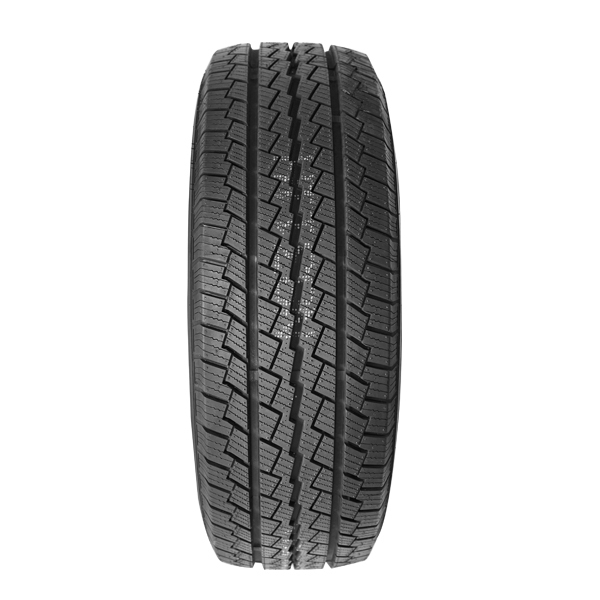

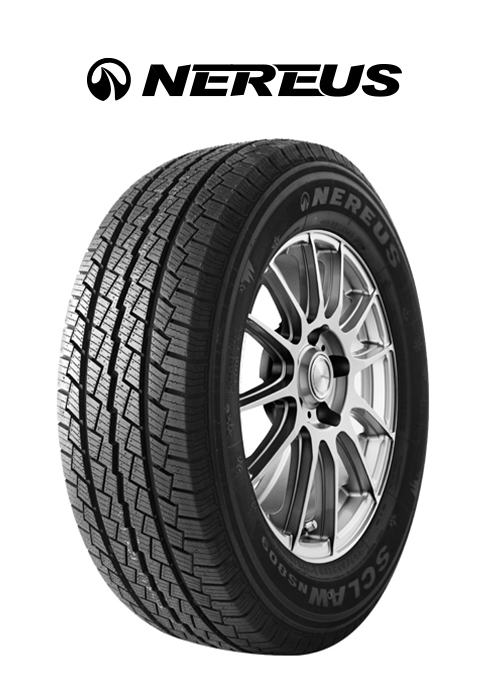

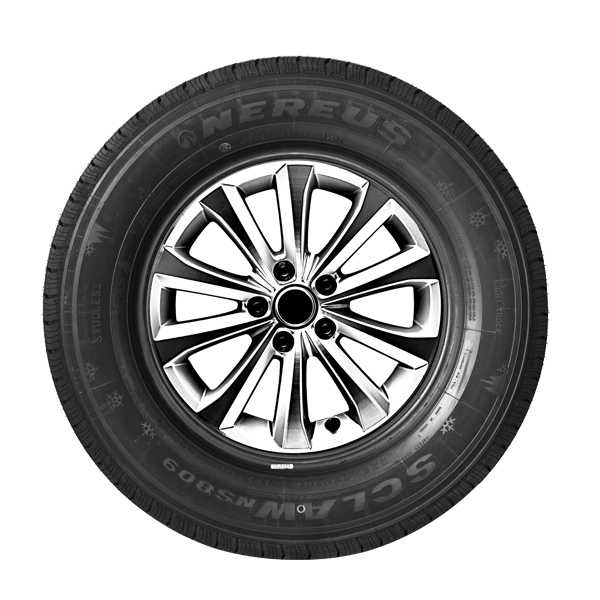

NS809

Commercial winter tires for vans and light trucks

High performance winter tire for tough snow condition

SPEED RATING : R/T Speed Rated

Noise

M+S

3PMSF

ice

snow

winter

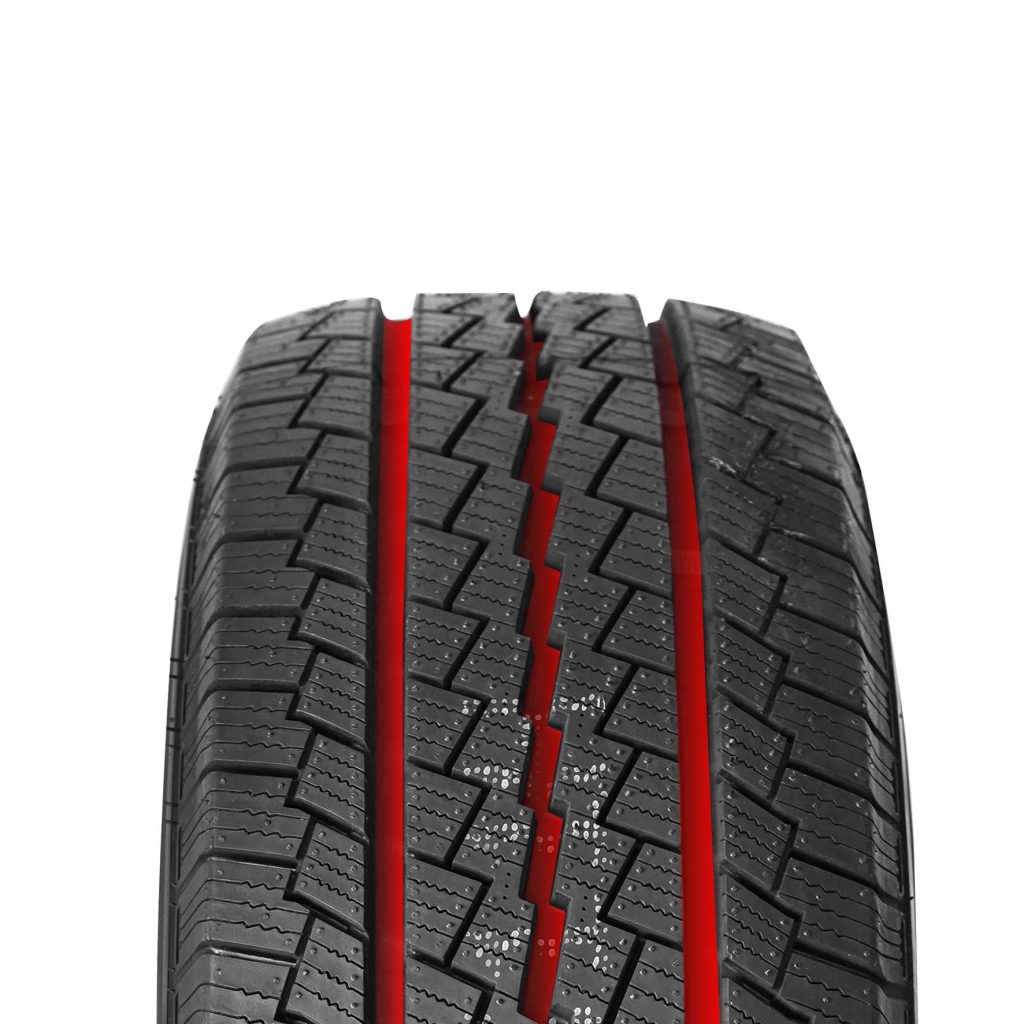

Three main grooves are designed to enhance the handling performance of tires on snowy and icy terrain.

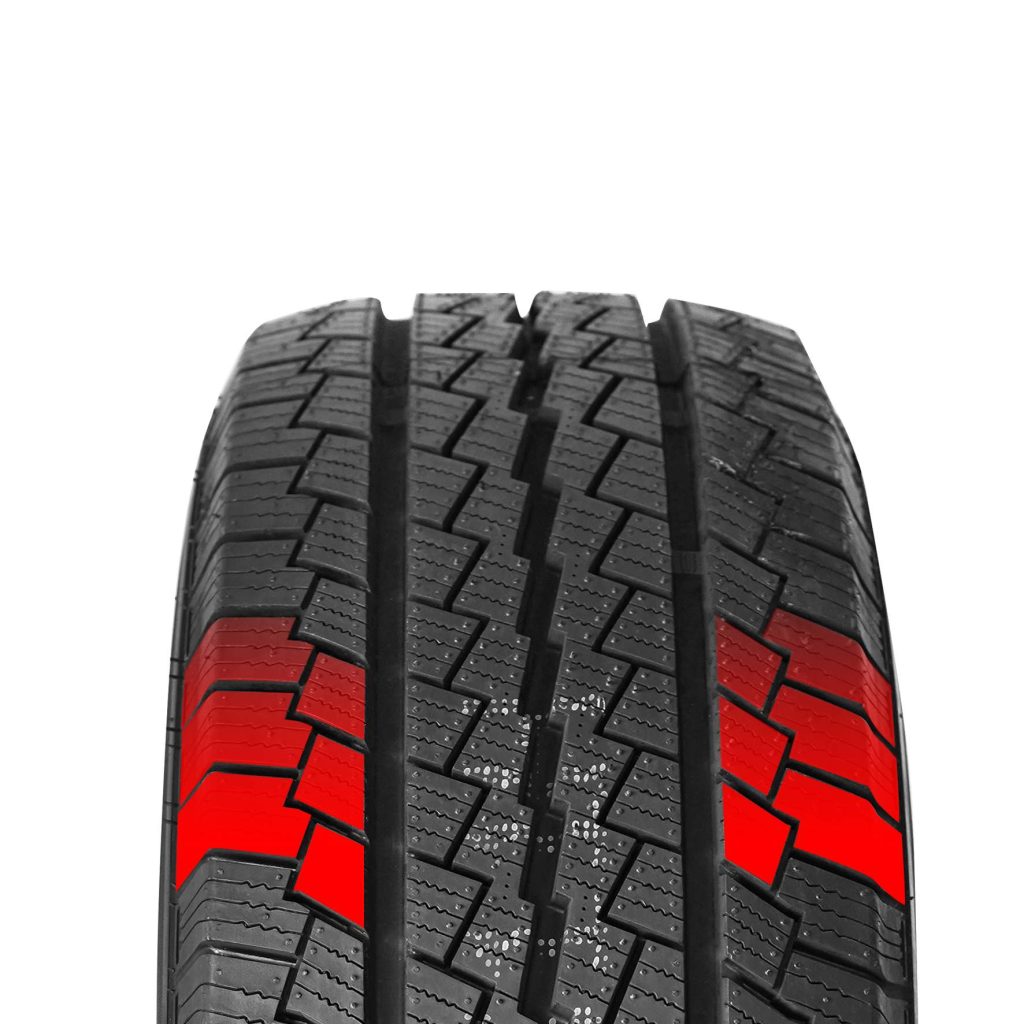

NS809 Semi closed tire shoulder increases tire rigidity, which is beneficial for improving stability.

Multi groove design helps to increase the physical deformation of the tread, which is beneficial for improving grip on snow and ice.

size

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
15″	195/70R15C	104/102R	6J	655	C	B	A	68dB	744503	450	900/850
	205/70R15C	106/104R	6J	669	C	B	A	68dB	744850	450	950/900
	215/65R15C	104/102R	6.5J	661	C	B	A	68dB	744731	375	900/850
	215/70R15C	109/107R	6.5J	683	C	B	A	68dB	744538	450	1030/975
	225/70R15C	112/110R	6.5J	697	C	B	A	68dB	744561	450	1120/1060
16″	185/75R16C	104/102R	5J	684	C	B	A	68dB	744828	475	900/850
	195/65R16C	104/102T	6J	660	C	B	A	68dB	744577	475	900/850
	195/75R16C	107/105R	5.5J	698	C	B	A	68dB	744671	475	975/925
	205/65R16C	107/105T	6J	672	C	B	A	68dB	744720	475	975/925
	215/60R16C	108/106R	6.5J	664	C	B	A	68dB	744888	475	1000/950
	215/65R16C	109/107T	6.5J	686	C	B	A	68dB	744750	475	1030/975
	215/75R16C	113/111R	6J	728	C	B	A	68dB	744804	475	1150/1090
	225/65R16C	112/110R	6.5J	698	C	B	A	68dB	744781	475	1120/1060
	225/75R16C	121/120R	6J	744	C	B	A	68dB	744965	575	1450/1400
	235/65R16C	115/113R	7J	712	C	B	A	68dB	744707	475	1215/1150
17″	215/60R17C	109/107T	6.5J	690	C	B	A	68dB	744943	475	1030/975

OWL=Outline White Letter

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
15″	195/70R15C	104/102R	6J	655	C	B	A	68dB	744503	450	900/850
	205/70R15C	106/104R	6J	669	C	B	A	68dB	744850	450	950/900
	215/65R15C	104/102R	6.5J	661	C	B	A	68dB	744731	375	900/850
	215/70R15C	109/107R	6.5J	683	C	B	A	68dB	744538	450	1030/975
	225/70R15C	112/110R	6.5J	697	C	B	A	68dB	744561	450	1120/1060

OWL=Outline White Letter

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
16″	185/75R16C	104/102R	5J	684	C	B	A	68dB	744828	475	900/850
	195/65R16C	104/102T	6J	660	C	B	A	68dB	744577	475	900/850
	195/75R16C	107/105R	5.5J	698	C	B	A	68dB	744671	475	975/925
	205/65R16C	107/105T	6J	672	C	B	A	68dB	744720	475	975/925
	215/60R16C	108/106R	6.5J	664	C	B	A	68dB	744888	475	1000/950
	215/65R16C	109/107T	6.5J	686	C	B	A	68dB	744750	475	1030/975
	215/75R16C	113/111R	6J	728	C	B	A	68dB	744804	475	1150/1090
	225/65R16C	112/110R	6.5J	698	C	B	A	68dB	744781	475	1120/1060
	225/75R16C	121/120R	6J	744	C	B	A	68dB	744965	575	1450/1400
	235/65R16C	115/113R	7J	712	C	B	A	68dB	744707	475	1215/1150

OWL=Outline White Letter

Rim Diameter	SIize	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
17″	215/60R17C	109/107T	6.5J	690	C	B	A	68dB	744943	475	1030/975

OWL=Outline White Letter

size

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
15″	195/70R15C	104/102R	6J	655	C	B	A	68dB	744503	450	900/850
	205/70R15C	106/104R	6J	669	C	B	A	68dB	744850	450	950/900
	215/65R15C	104/102R	6.5J	661	C	B	A	68dB	744731	375	900/850
	215/70R15C	109/107R	6.5J	683	C	B	A	68dB	744538	450	1030/975
	225/70R15C	112/110R	6.5J	697	C	B	A	68dB	744561	450	1120/1060
16″	185/75R16C	104/102R	5J	684	C	B	A	68dB	744828	475	900/850
	195/65R16C	104/102T	6J	660	C	B	A	68dB	744577	475	900/850
	195/75R16C	107/105R	5.5J	698	C	B	A	68dB	744671	475	975/925
	205/65R16C	107/105T	6J	672	C	B	A	68dB	744720	475	975/925
	215/60R16C	108/106R	6.5J	664	C	B	A	68dB	744888	475	1000/950
	215/65R16C	109/107T	6.5J	686	C	B	A	68dB	744750	475	1030/975
	215/75R16C	113/111R	6J	728	C	B	A	68dB	744804	475	1150/1090
	225/65R16C	112/110R	6.5J	698	C	B	A	68dB	744781	475	1120/1060
	225/75R16C	121/120R	6J	744	C	B	A	68dB	744965	575	1450/1400
	235/65R16C	115/113R	7J	712	C	B	A	68dB	744707	475	1215/1150
17″	215/60R17C	109/107T	6.5J	690	C	B	A	68dB	744943	475	1030/975

OWL=Outline White Letter

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
15″	195/70R15C	104/102R	6J	655	C	B	A	68dB	744503	450	900/850
	205/70R15C	106/104R	6J	669	C	B	A	68dB	744850	450	950/900
	215/65R15C	104/102R	6.5J	661	C	B	A	68dB	744731	375	900/850
	215/70R15C	109/107R	6.5J	683	C	B	A	68dB	744538	450	1030/975
	225/70R15C	112/110R	6.5J	697	C	B	A	68dB	744561	450	1120/1060

OWL=Outline White Letter

Rim Diameter	Size	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
16″	185/75R16C	104/102R	5J	684	C	B	A	68dB	744828	475	900/850
	195/65R16C	104/102T	6J	660	C	B	A	68dB	744577	475	900/850
	195/75R16C	107/105R	5.5J	698	C	B	A	68dB	744671	475	975/925
	205/65R16C	107/105T	6J	672	C	B	A	68dB	744720	475	975/925
	215/60R16C	108/106R	6.5J	664	C	B	A	68dB	744888	475	1000/950
	215/65R16C	109/107T	6.5J	686	C	B	A	68dB	744750	475	1030/975
	215/75R16C	113/111R	6J	728	C	B	A	68dB	744804	475	1150/1090
	225/65R16C	112/110R	6.5J	698	C	B	A	68dB	744781	475	1120/1060
	225/75R16C	121/120R	6J	744	C	B	A	68dB	744965	575	1450/1400
	235/65R16C	115/113R	7J	712	C	B	A	68dB	744707	475	1215/1150

OWL=Outline White Letter

Rim Diameter	SIize	LI/SI	Measuring Rim	Overall Diameter（mm）	Fuel Efficency	Wet Grip	External Rolling Noise		EPREL NO.	Max. Pressure(kPa)	Max. Load(kg） Single/Dual
17″	215/60R17C	109/107T	6.5J	690	C	B	A	68dB	744943	475	1030/975

OWL=Outline White Letter
