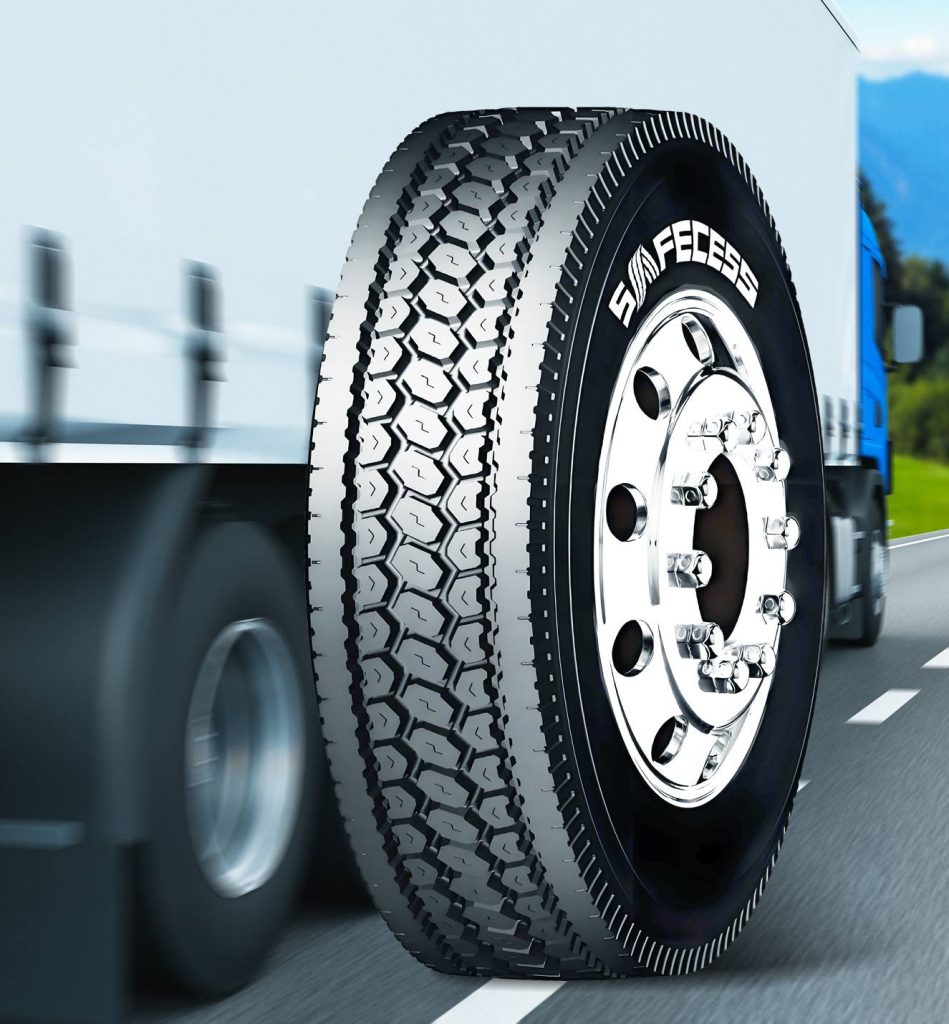

SFC69

New pattern design,improving mileage for long distance transportion.

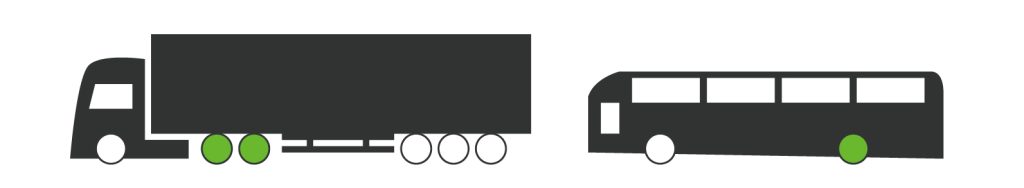

Suitable for driving axle for mid to long distance trucks and busses traveling on highways and normal roads.

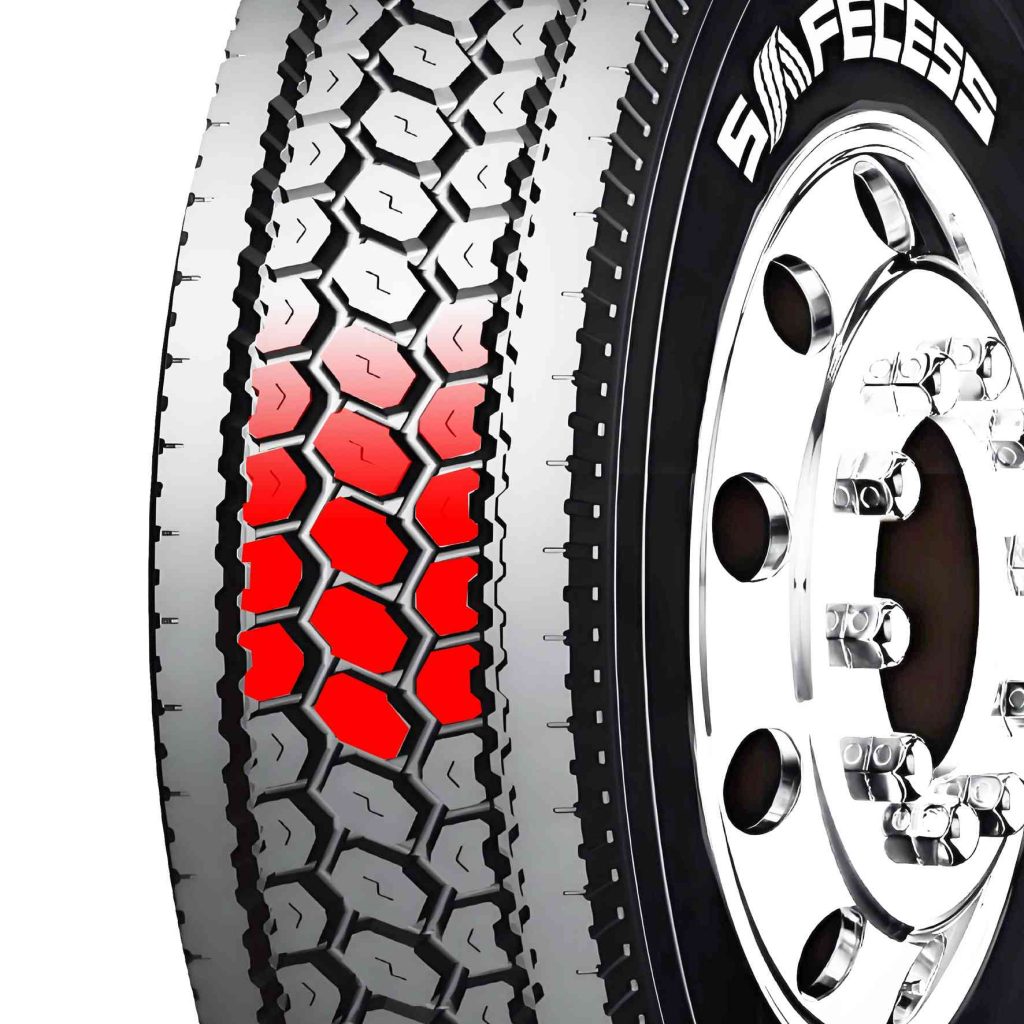

Unique close shoulder design improves uniform tread wear.

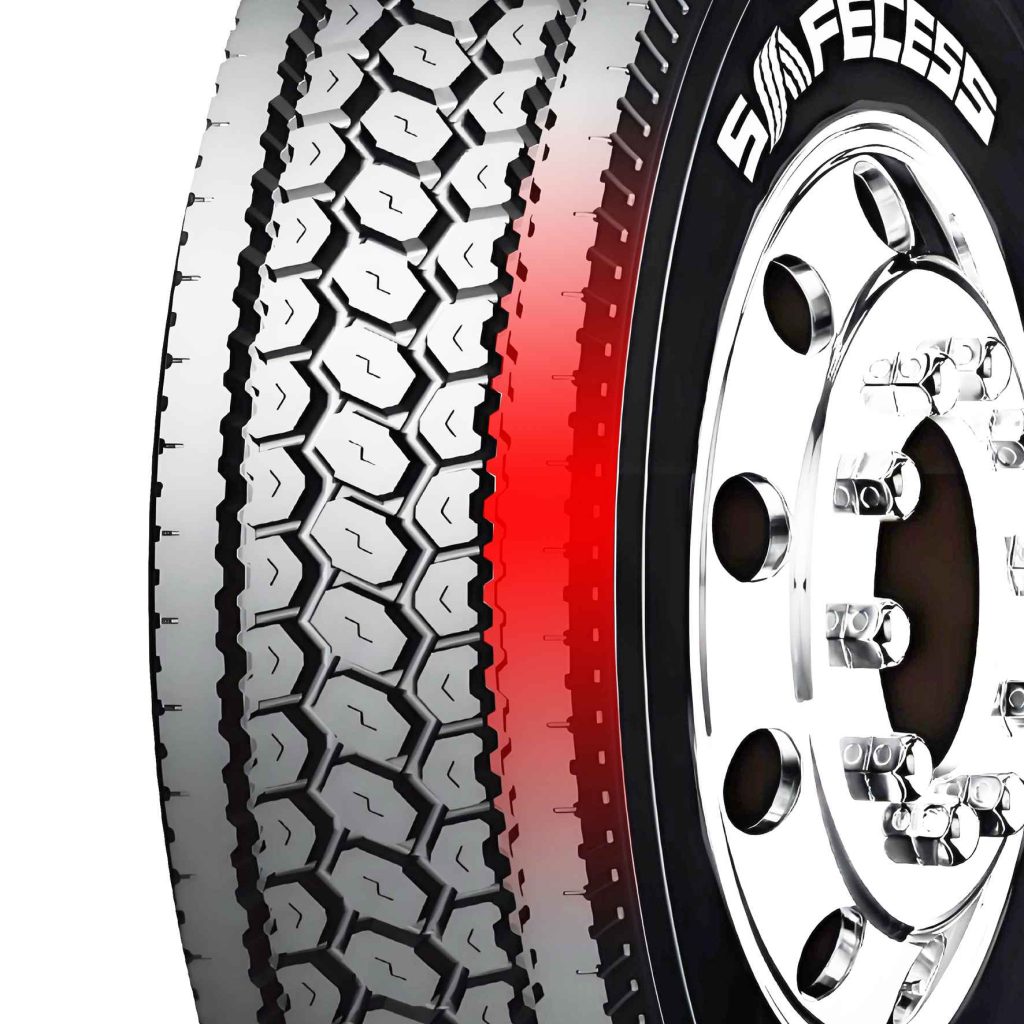

Longitudinal mixed pattern combine with curved groove-bottom design provide excellent anti-crack performance.

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
11R22.5	16	146/143	L	8.25	3000	2725	830	830	279	1054	19
11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1116	19
295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1020	19

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
11R22.5	16	146/143	L	8.25	3000	2725	830	830	279	1054	19
11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1116	19
295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1020	19
