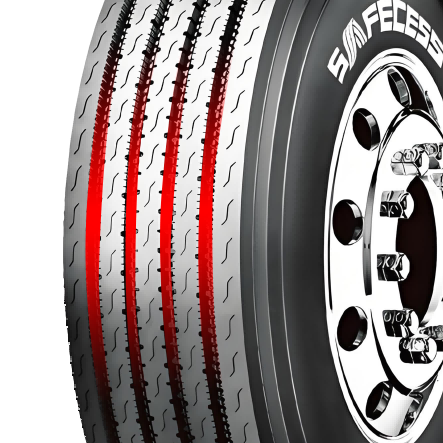

Four extra-wide grooves are designed for hydroplaning resistance.
Unique tread wall bite edges reduce irregular wear and improve traction.

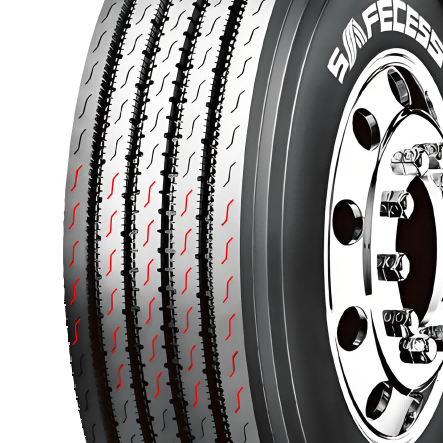

S-sipes improve wet traction and dissipate heat for prolonged tread life.
| Size | PR | Load | Speed | Standard | Max. Load(kg) | Pressure(kPa) | Section Width(mm) | Overall Diameter(mm) | Tread Depth(mm) | ||
| Index | Rating | Rim | Single | Dual | Single | Dual | |||||
| 11R22.5 | 16 | 152/149 | M | 8.25 | 3550 | 3250 | 830 | 830 | 279 | 1054 | 14 |
| 295/75R22.5 | 16 | 146/143 | M | 9 | 3000 | 2725 | 830 | 830 | 298 | 1020 | 14 |
| 11R24.5 | 16 | 149/146 | M | 8.25 | 3250 | 3000 | 830 | 830 | 279 | 1116 | 15 |
| 285/75R24.5 | 16 | 147/144 | M | 8.25 | 2800 | 2575 | 760 | 760 | 283 | 1050 | 14 |
| Size | PR | Load | Speed | Standard | Max. Load(kg) | Pressure(kPa) | Section Width(mm) | Overall Diameter(mm) | Tread Depth(mm) | ||
| Index | Rating | Rim | Single | Dual | Single | Dual | |||||
| 11R22.5 | 16 | 152/149 | M | 8.25 | 3550 | 3250 | 830 | 830 | 279 | 1054 | 14 |
| 295/75R22.5 | 16 | 146/143 | M | 9 | 3000 | 2725 | 830 | 830 | 298 | 1020 | 14 |
| 11R24.5 | 16 | 149/146 | M | 8.25 | 3250 | 3000 | 830 | 830 | 279 | 1116 | 15 |
| 285/75R24.5 | 16 | 147/144 | M | 8.25 | 2800 | 2575 | 760 | 760 | 283 | 1050 | 14 |
